TEC Magazine Code on the TEC-1G
A great way to learn how to use the TEC-1G is to key in programs presented in the TE Magazines Issues 10 to 15. If the programs are keyed in directly, they probably won’t work. This is because they usually start at addresses 0800H or 0900H. These addresses are reserved for Mon3. To get the code working, simply update all 2-byte address references to match the address location of the code on the 1G.
Keypad interactions are a bit more complicated. The old monitors use the register I and the NMI (Non-Maskable Interrupt) to trigger and save a keypad press. Mon3 uses polling instead and RST/API calls to do keypad reading. See the next chapter for more information on RST and API calls.
Below is a conversion table to help convert older code to work on Mon3 when a keypad press is required.
Old Mon3 Reason
Command Replacement
HALT RST 08H RST 08H simulates a HALT command and sets
register A with the key value pressed.
LD A,I LD C,10H A LD A,I by itself is 'polling' for a key press. Call the
RST 10H scanKey API routine (10H) which sets register A with
the key value pressed.
If LD A,I is immediately after a HALT instruction,
then just use RST 08H as described above.

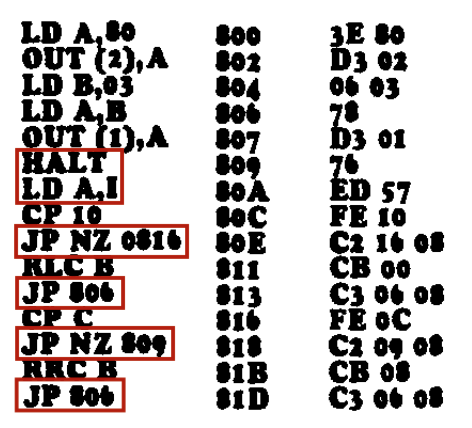

Here is an example of magazine code at 0800H with key input converted to use Mon3 at RAM address 4000H. The code in RED has been modified.
LD A,80H 4000 3E 80
OUT (2),A 4002 D3 02
LD B,03H 4004 06 03
LD A,B 4006 78
OUT (1),A 4007 D3 01
RST 08H 4009 CF
CP 10H 400A FE 10
JP NZ,4014H 400C C2 14 40
RLC B 400F CB 00
JP 4006H 4011 C3 06 40
CP 0CH 4014 FE 0C
JP NZ,4009H 4016 C2 09 40
RRC B 4019 CB 08
JP 4006H 401B C3 06 40
