Appendix and Useful Links

Ports

Port	Direction	Description
00H	In	Keypad press encoder Bit 0-4: HexPad Bit 5: Function Key (active low) Bit 6-7: N/A
01H	Out	Seven segment digits switch Bit 0-1: Data segments Bit 2-5: Address segments Bit 6: FTDI Rx (out), Disco LEDs Bit 7: Speaker
02H	Out	Seven segment LED switch Bit 0: G segment Bit 1: F segment Bit 2: C segment Bit 3: D segment Bit 4: E segment Bit 5: DP segment Bit 6: B segment Bit 7: A segment
03H	In	System input Bit 0: Matrix Keyboard (DIP-3) Bit 1: Protect Mode (DIP-3) Bit 2: Expand Mode (DIP-3) Bit 3: Expand Status Bit 4: Cartridge Flag Bit 5: General Input Bit 6: Keypress Flag Bit 7: FTDI Tx (in)
04H	In/Out	LCD Instruction
05H	Out	LED 8x8 Matrix Horizontal (TEC Expander)
06H	Out	LED 8x8 Matrix Vertical (TEC Expander)
07H	Out	Graphical LCD Instruction
84H	In/Out	LCD Data
87H	Out	Graphical LCD Data
F8H	In/Out	Spare (TEC Expander & I/O Bus)
F9H	In/Out	Spare (TEC Expander & I/O Bus)
FAH	In/Out	Spare (I/O Bus)
FBH	In/Out	Spare (General I/O & I/O Bus)
FCH	In/Out	RTC (Real Time Clock) (General I/O & I/O Bus)
FDH	In/Out	SD (Secure Digital) Flash Card (General I/O)
FEH	In	Matrix Keyboard
FFH	Out	System Latch Bit 0: Shadow (active low) Bit 1: Protect Bit 2: Expand Bit 3: FF-D3 (Mem Bus) Bit 4: FF-D4 (Mem Bus) Bit 5: FF-D5 (Mem Bus) Bit 6: FF-D6 (Mem Bus) Caps Lock: Matrix Keyboard

Serial Connection

Constant	Value
FTDI to USB Serial Transmission	4800-8-N-2 Baud 4800, 8 packet bits No parity, 2 stop bits

The baud rate value can be modified, but the other constants are the same.

Function Key Shortcuts

Key	Shortcut	Key	Shortcut	Key	Shortcut	Key	Shortcut
0	Quick Links	1-3	Addr. Jump	4	Intel Load	5	GLCD Term
6	Save Session	7	Load Session	8	NOP's Fill	A	Restore Blk.
B	Backup Blk.	C	Smart Copy	D	Diss. View	E	Expand
F	Catalog	AD	Main Menu	+	Insert Byte	-	Delete Byte

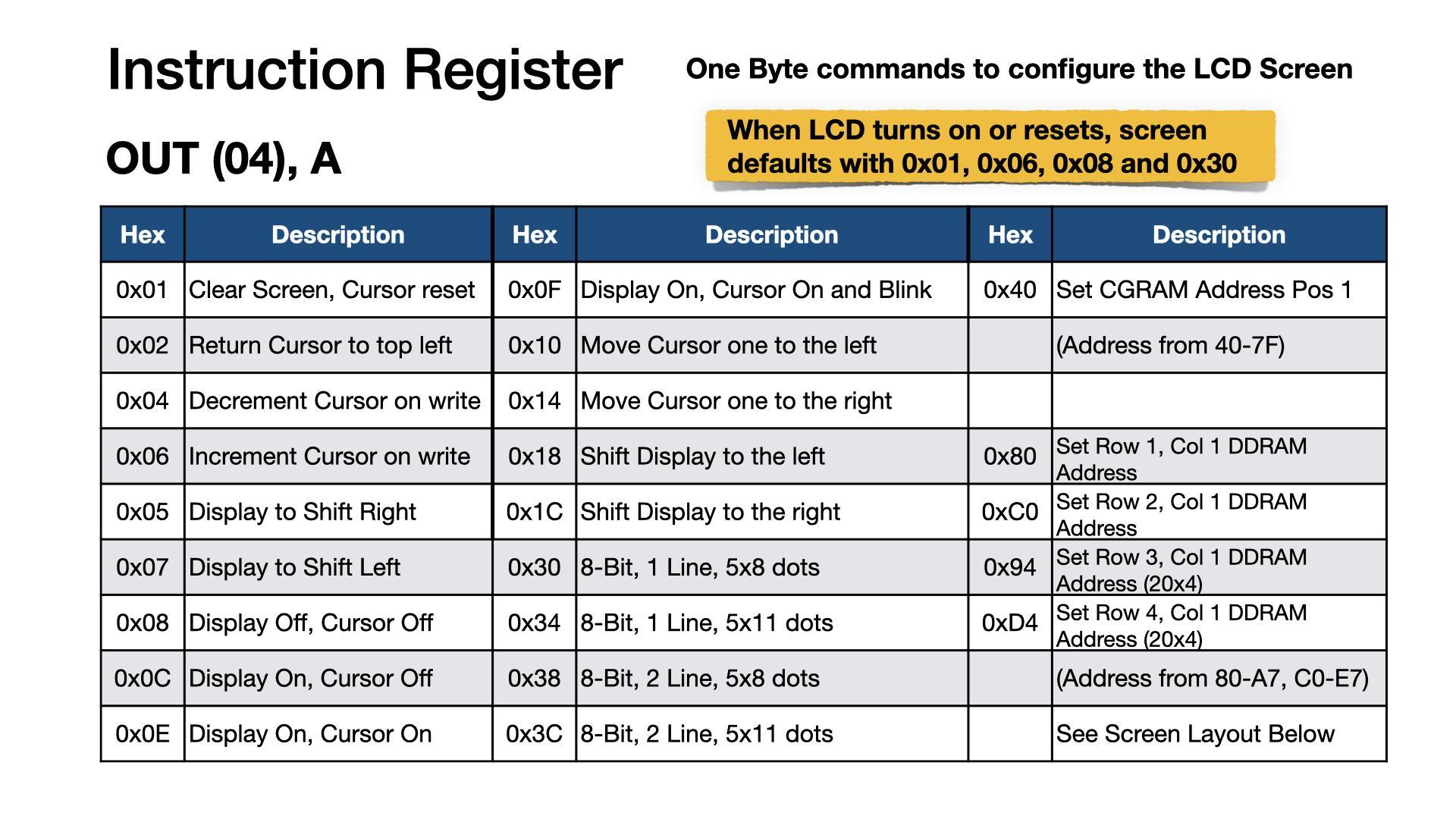

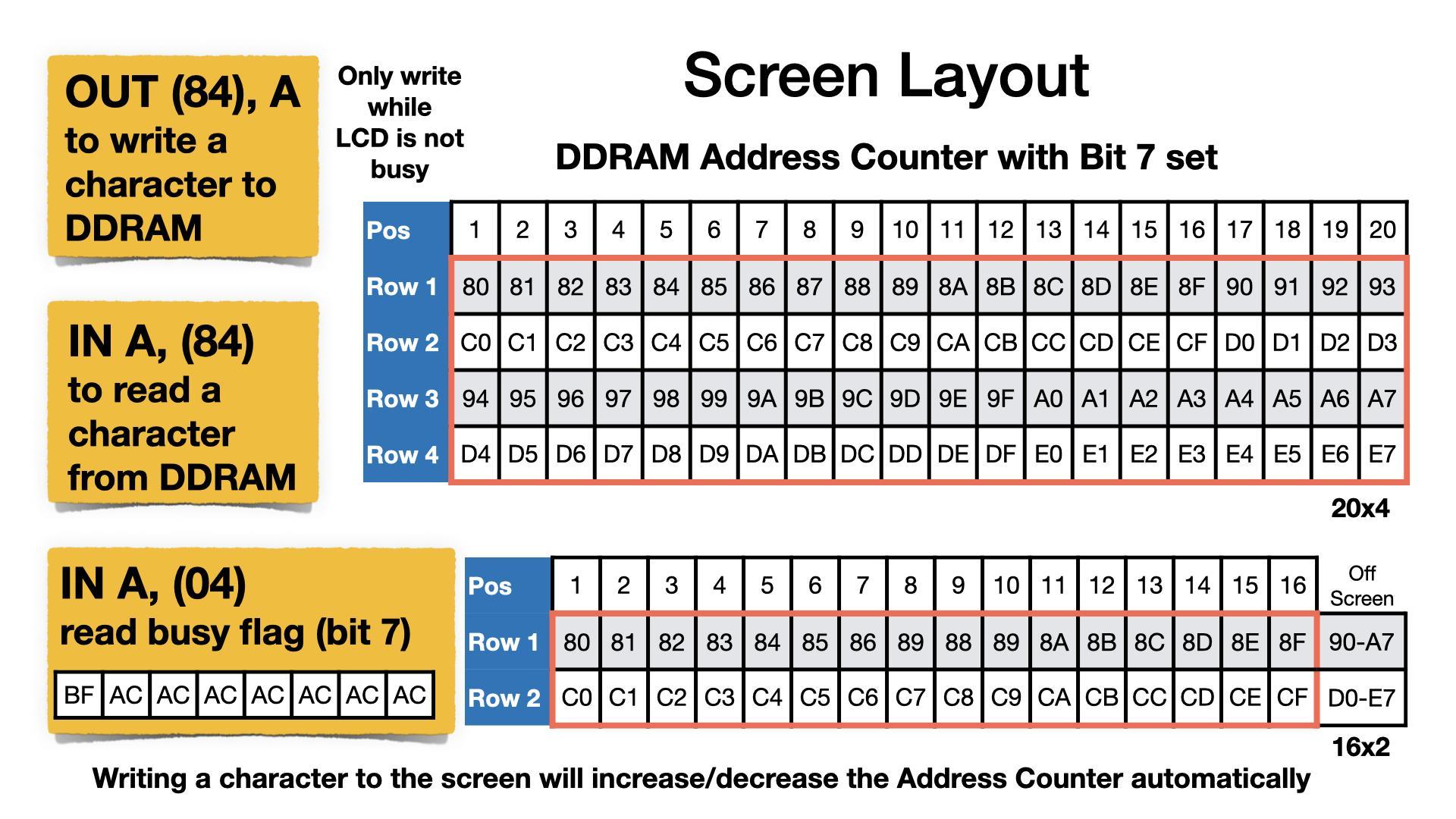

LCD Cheatsheet

Z80 instructions to communicate with the LCD screen are given as direct commands. IE: OUT (04),A. Mon3 also provides API routines that do the same but also check for the LCD busy state. If using direct port instructions, the LCD busy flag is to be checked prior to the instruction call. The example code provided uses the API routines.

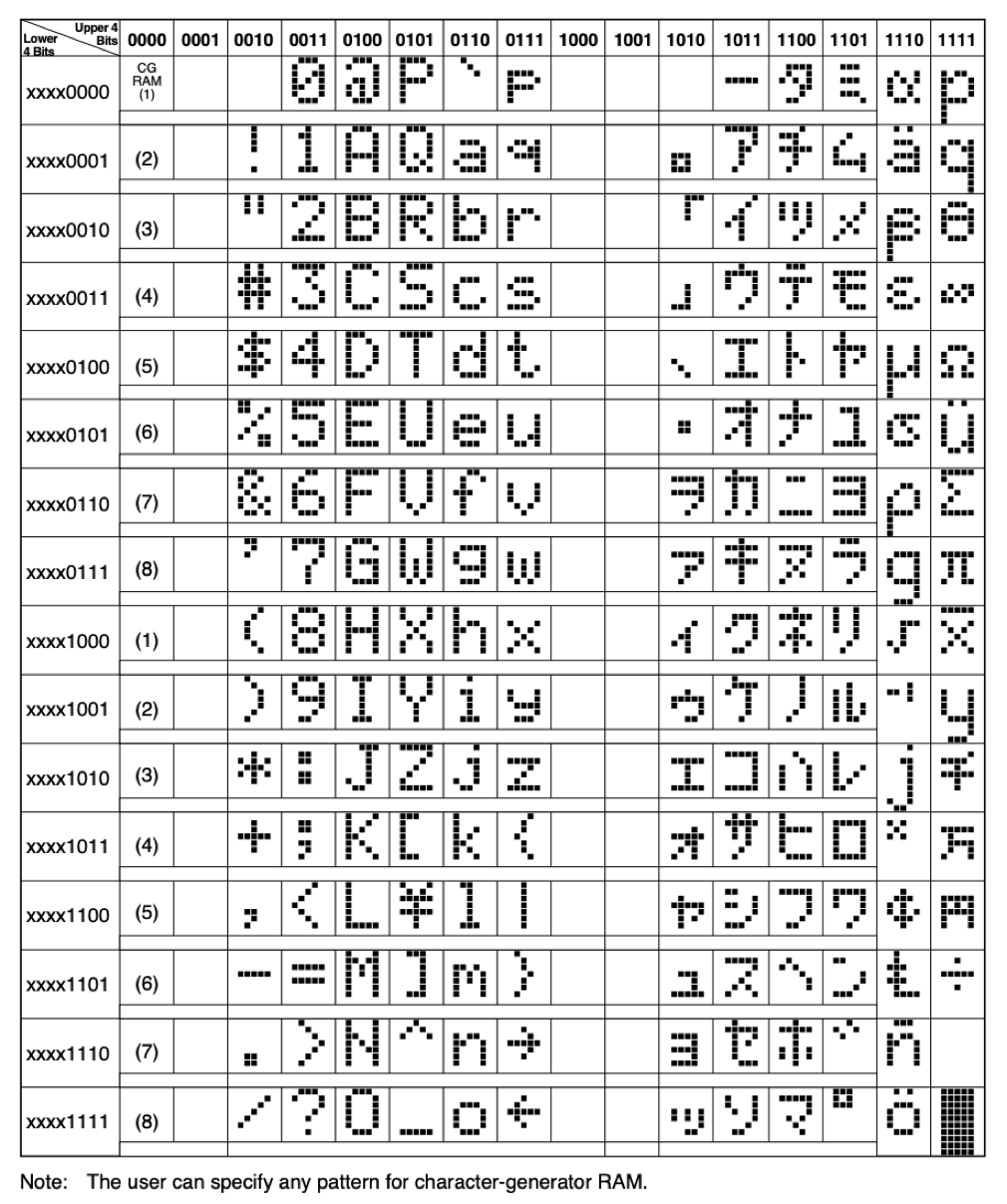

Character Table

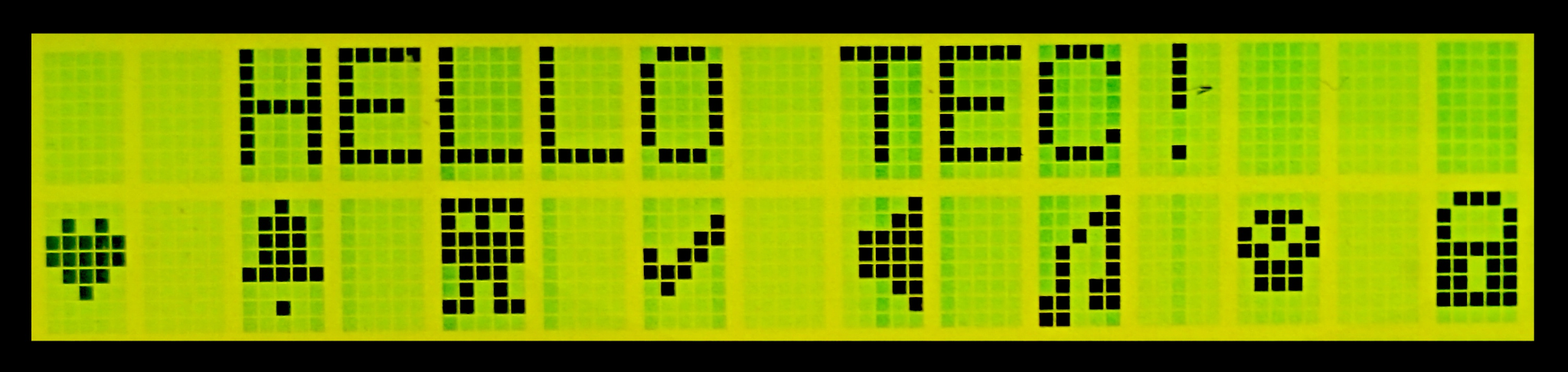

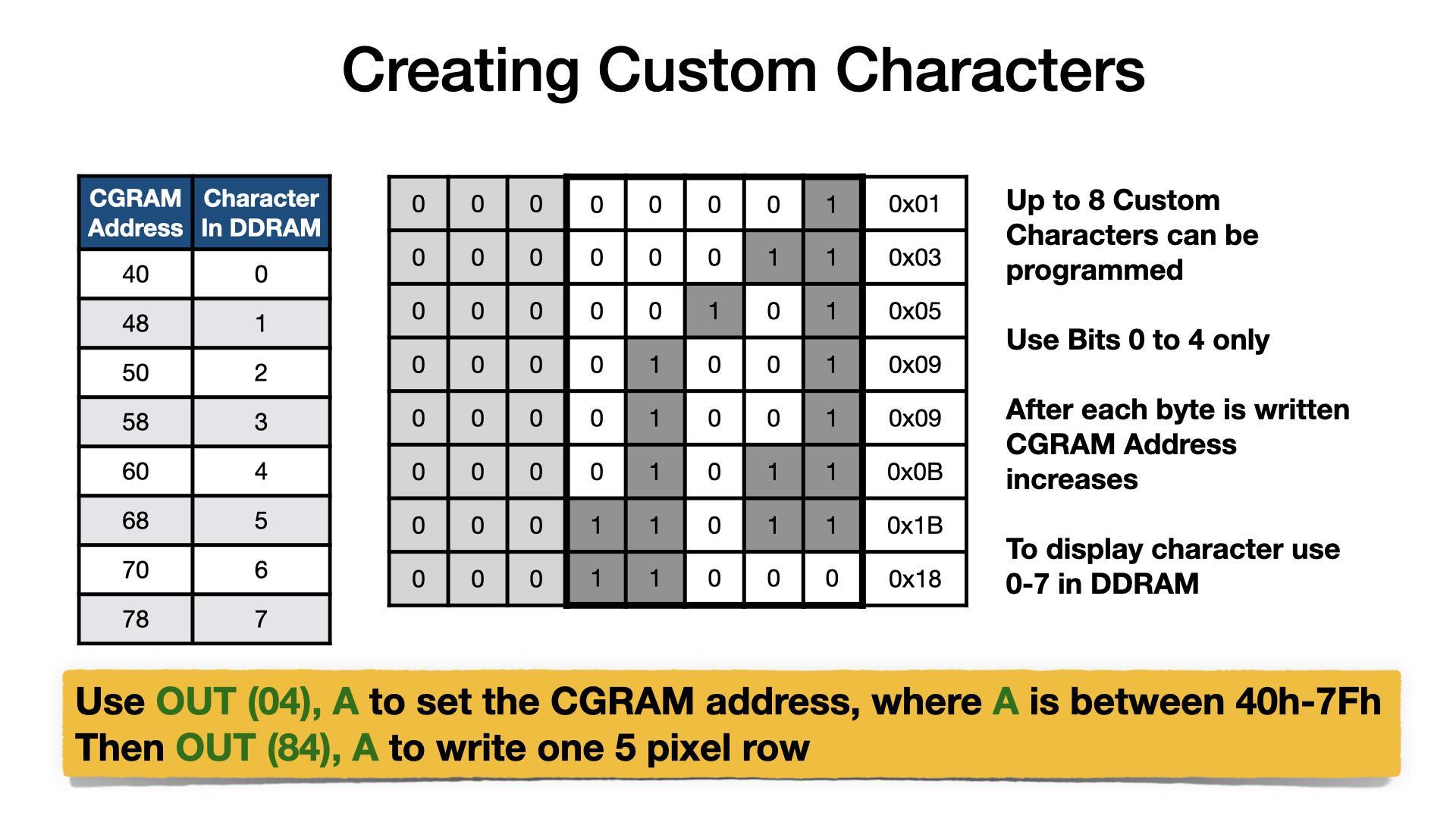

Example Using CGRAM and DDRAM

_stringToLCD   .equ  13
_charToLCD     .equ  14
_commandToLCD  .equ  15

; LCD Setup
4000 0E 0F    ld c,_commandToLCD  ;LCD Instruction API routine
4002 06 01    ld b,01H            ;Clear display
4004 D7       rst 10H             ;call API routine
4005 06 38    ld b,38H            ;8-bit, 2 lines, 5x8 characters
4007 D7       rst 10H             ;call API routine

; Tell the LCD that next data will be to CGRAM
4008 06 40    ld b,40H            ;CGRAM entry
400A D7       rst 10H             ;call API routine

; Save multiple characters to CGRAM using lookup table
400B 06 40    ld b,40H            ;8 characters, 8 bytes each
400D 0E 0E    ld c,_charToLCD     ;LCD Data API routine
400F 21 3F 40 ld hl,403FH         ;LCD custom character table
loop1:
4012 7E       ld a,(hl)           ;get custom character byte
4013 23       inc hl              ;move to next item in table
4014 D7       rst 10H             ;call API routine
4015 10 FB    djnz loop1          ;continue for all 64 char bytes

; Display first line of text
4017 0E 0F    ld c,_commandToLCD  ;LCD Instruction API routine
4019 06 82    ld b,82H            ;move cursor to row 1, col 3
401B D7       rst 10H             ;call API routine
401C 21 34 40 ld hl,4034H         ;ASCII text
401F 0E 0D    ld c,_stringToLCD   ;LCD String API routine
4021 D7       rst 10H             ;call API routine

; Display custom characters
4022 0E 0F    ld c,_commandToLCD  ;LCD Instruction API routine
4024 06 C0    ld b,0C0H           ;move cursor to row 2, col 1
4026 D7       rst 10H             ;call API routine
4027 06 08    ld b,08H            ;8 characters
4029 0E 0E    ld c,_charToLCD     ;LCD Data API routine
loop2:
402B 78       ld a,b              ;set A to current character
402C D7       rst 10H             ;call API routine
402D 3E 20    ld a,20H            ;space character
402F D7       rst 10H             ;call API routine
4030 10 F9    djnz loop2          ;continue for all 8 characters

; All done, wait for key press and exit
4032 CF       rst 08H             ;key wait and press (HALT)
4033 C9       ret                 ;exit

TEXT TABLE:
4034 48 45 4C 4C 4F 20 54 45 43 21 00  ; "HELLO TEC!"

CHAR TABLE:
403F 00 0A 1F 1F 0E 04 00 00  ; Heart
4047 04 0E 0E 0E 1F 00 04 00  ; Bell
404F 1F 15 1F 1F 0E 0A 1B 00  ; Alien
4057 00 01 03 16 1C 08 00 00  ; Tick
405F 01 03 0F 0F 0F 03 01 00  ; Speaker
4067 01 03 05 09 09 0B 1B 18  ; Note
406F 00 0E 15 1B 0E 0E 00 00  ; Skull
4077 0E 11 11 1F 1B 1B 1F 00  ; Lock

Useful Links

• TEC-1G GitHub Repository

• TEC-1G Programs

• TEC-1G Store (Purchase a TEC-1G and Add-On Boards)

• TEC-1 Facebook Page

• Z80 Instruction Set Reference

• Online Z80 Compiler and Debugger

• Rodney Zaks Programming the Z80

• TEC Seven Segment Value Calculator

• Ready? Z80 YouTube Channel (TEC related content)

• Mon3 video demonstration: part 1 and part 2

• TEC-1 GitHub Group

• Talking Electronics Website including original TEC related magazines

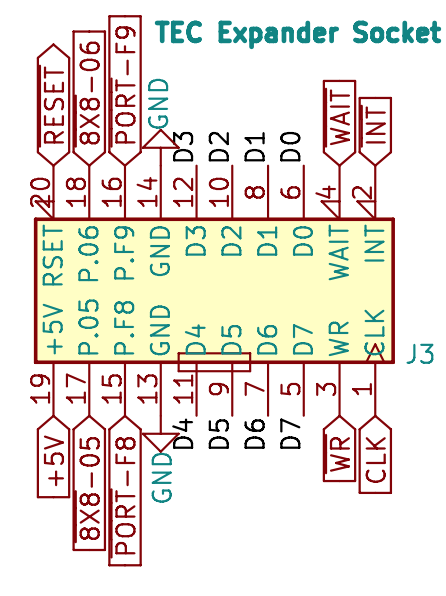

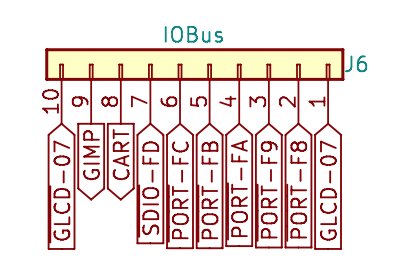

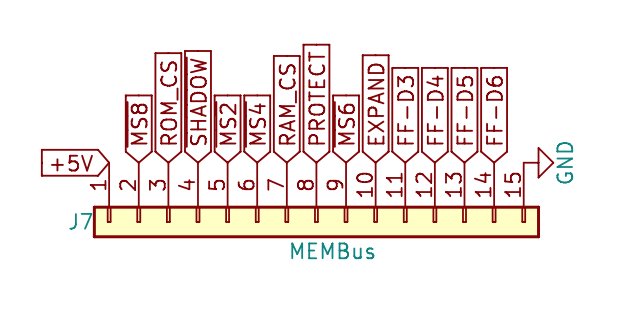

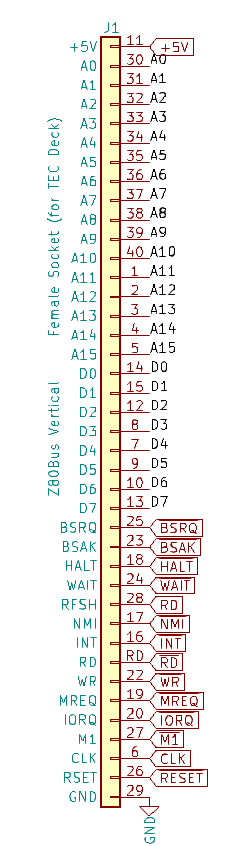

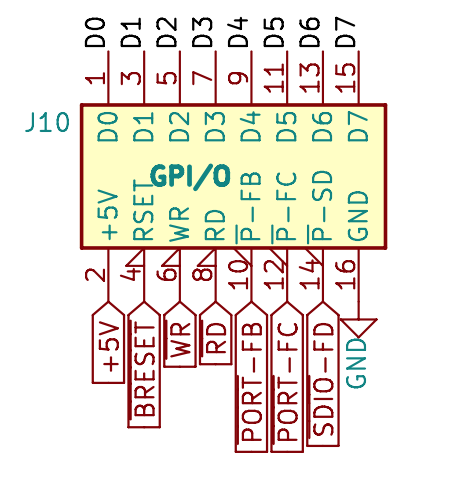

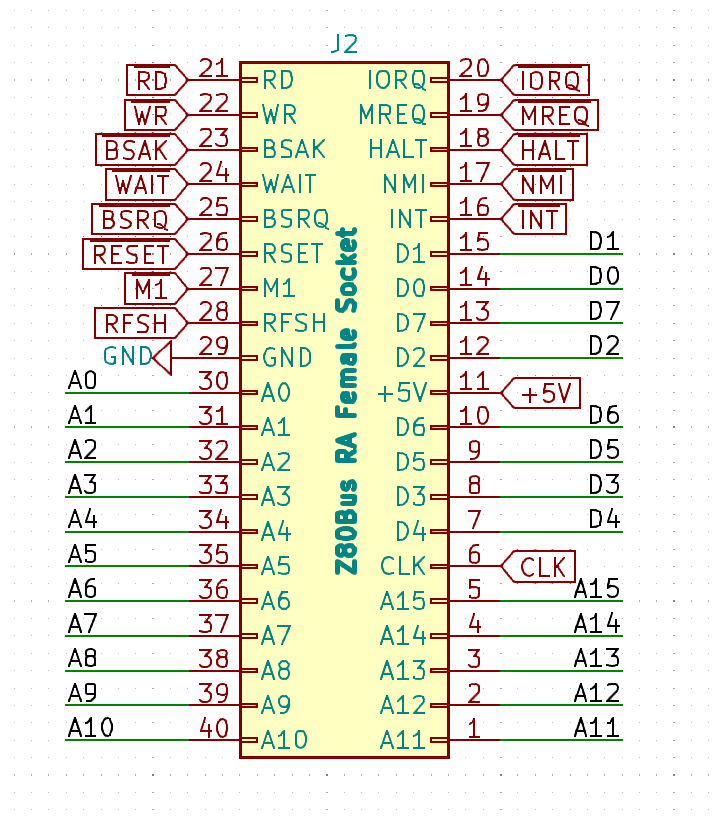

I/O Connectors

The connector diagrams below cover the Expander Socket, General Purpose I/O, Z80 Bus Connector and TEC Deck Connectors. Note: pin 28 is RD.
